SMD Zener Diode Marking Code Chart (11V–22V): WG, WH, WI, WJ, WK, WL, WM & WN Identification Guide
Identifying an SMD Zener diode can be challenging when only a tiny printed marking code is visible.
A quick-reference marking chart helps technicians and electronics enthusiasts determine the correct Zener voltage without unnecessary guesswork, making PCB troubleshooting and component replacement much easier.

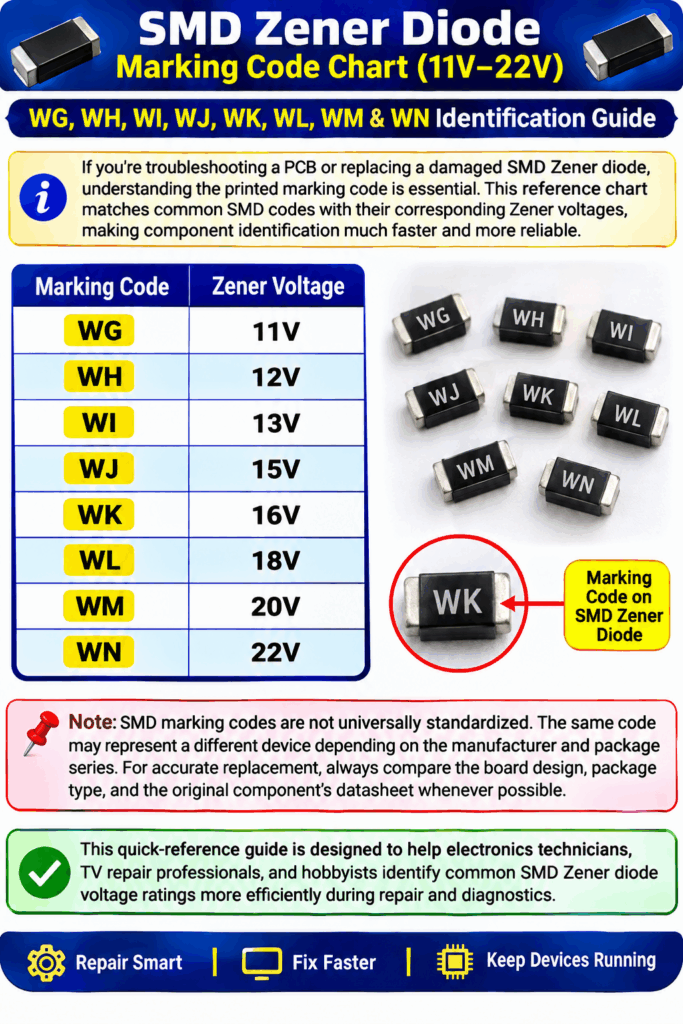

The following marking codes are commonly associated with these Zener voltage ratings:
- WG = 11V
- WH = 12V
- WI = 13V
- WJ = 15V
- WK = 16V
- WL = 18V
- WM = 20V
- WN = 22V
These codes are frequently found on compact SMD Zener diodes used in power supplies, televisions, monitors, LED drivers, routers, amplifiers, and many other electronic devices. During repair, a damaged or unreadable diode can make fault diagnosis difficult. Using a marking code chart allows you to quickly narrow down the possible replacement voltage.
However, it is important to remember that SMD marking codes are not universally standardized. The same printed code may represent a different component depending on the manufacturer, package type, or product series. Because of this, you should never rely solely on the marking code when selecting a replacement.
For the best results, compare the circuit design, package size, nearby components, and, whenever available, the original device’s datasheet or service manual. Measuring the circuit and checking the diode’s application can also help confirm the correct voltage rating before installation.
Whether you are a professional TV repair technician, mobile repair engineer, electronics student, or DIY hobbyist, keeping a reliable SMD Zener diode marking chart nearby can save valuable time and reduce replacement errors. It is a simple yet practical reference that improves repair accuracy and speeds up electronics diagnostics.
